FigmaのノードIDを指定すると、対象のレイヤーを探して選択できます。このプラグインは現在の選択からIDを取得し、複数行のIDを受け取って同じページのレイヤーを選びます。別ページのIDや取得できないIDはスキップとして数えます。
ノードIDの表記と入力
| 入力 | 扱い |
|---|---|
| 12:34 | Plugin APIのIDとして使う |
| 12-34 | 単純な数値IDに限り12:34へ変換する |
| 名前とTABとID | 最後のTABの後ろをIDとして使う |
| 同じIDの複数行 | 1件にまとめる |
末尾の:00や、インスタンス内部のIDに含まれる文字は一律に削りません。URL全体ではなくnode-idの値を入力します。元の記事の取得欄は名前とTABとIDを出すため、その内容を入力へ戻せるようにしています。
選択の範囲と使い方
- 複製したファイルで起動します。
- 現在の選択からIDを取得するか、入力欄へ1行1IDで貼り付けます。
- 選択ボタンを押します。
- 最初の有効な対象のページへ移り、そのページに属する対象を選択します。
- 選択件数とスキップ件数を確認します。
Figmaのselectionは現在のページに属するレイヤーの配列です。異なるページを混ぜて一括選択することはしません。対象が1件も取得できない場合は、元の選択を残します。出典:ノード取得・ページ切り替えAPI、PageNode。
ファイルを作成する
FigmaのNew pluginで生成したmanifestを基に、次の設定を使います。掲載例ではidを省略しています。自分のmanifestに割り当てられたidがある場合はその値を保ち、サンプルの任意文字列に置き換えません。3ファイルを同じフォルダへ保存してください。
manifest.json
{
"name": "ノードIDで選択",
"api": "1.0.0",
"main": "code.js",
"ui": "ui.html",
"editorType": [
"figma"
],
"documentAccess": "dynamic-page",
"networkAccess": {
"allowedDomains": [
"none"
]
}
}code.js
figma.showUI(__html__, { width: 350, height: 520 });
function normalizeId(raw) {
const fields = String(raw || "").trim().split("\t");
const id = fields[fields.length-1].trim();
return /^\d+-\d+$/.test(id) ? id.replace("-", ":") : id;
}
function pageOf(node) {
let n = node;
while (n && n.type !== "PAGE") n = n.parent;
return n;
}
function reportSelection() {
figma.ui.postMessage({ type: "selected-ids", ids: figma.currentPage.selection.map(n => n.name.replace(/[\t\r\n]/g," ")+"\t"+n.id) });
}
let busy = false;
figma.ui.onmessage = async msg => {
if (!msg || busy) return;
if (msg.type === "get-selected-ids") { reportSelection(); return; }
if (msg.type !== "select-by-id" || !Array.isArray(msg.ids)) return;
busy = true;
try {
const ids = Array.from(new Set(msg.ids.map(normalizeId).filter(Boolean)));
const nodes = []; let page = null, skipped = 0;
for (const id of ids) {
let node;
try { node = await figma.getNodeByIdAsync(id); } catch (_) { skipped++; continue; }
if (!node || !("visible" in node)) { skipped++; continue; }
const p = pageOf(node);
if (!p || (page && p.id !== page.id)) { skipped++; continue; }
page = p; nodes.push(node);
}
if (nodes.length) {
await figma.setCurrentPageAsync(page);
figma.currentPage.selection = nodes;
figma.viewport.scrollAndZoomIntoView(nodes);
}
figma.ui.postMessage({ type: "selection-result", selected: nodes.length, skipped });
reportSelection();
} catch (_) { figma.ui.postMessage({ type: "selection-result", selected: 0, skipped: msg.ids.length }); }
finally { busy = false; }
};
figma.on("selectionchange", reportSelection);ui.html
<!DOCTYPE html>
<html lang="ja">
<head>
<meta charset="utf-8" />
<title>ノードIDで選択</title>
<style>
body {
font: 13px/1.6 -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto,
"Hiragino Sans", "Noto Sans JP", "メイリオ", sans-serif;
margin: 12px;
}
textarea {
width: 100%;
height: 110px;
box-sizing: border-box;
}
.row {
margin: 10px 0;
}
.btn {
padding: 8px 10px;
border: 1px solid #ccc;
background: #f7f7f7;
cursor: pointer;
border-radius: 6px;
}
.btn:active {
transform: translateY(1px);
}
.muted {
color: #666;
font-size: 12px;
}
.grid {
display: grid;
grid-template-columns: 1fr auto;
gap: 8px;
align-items: center;
}
.stack {
display: grid;
gap: 8px;
}
hr {
border: none;
border-top: 1px solid #e5e5e5;
margin: 14px 0;
}
</style>
</head>
<body>
<div class="stack">
<div class="row">
<h3 style="margin: 0 0 8px">レイヤーIDで選択</h3>
<textarea
id="idsInput"
placeholder="複数行にIDを貼り付けてください(例:I123:45)"
></textarea>
<div class="grid">
<span class="muted">各行を1つのIDとして処理します。</span>
<button id="selectBtn" class="btn">選択</button>
</div>
</div>
<hr />
<div class="row">
<h3 style="margin: 0 0 8px">現在の選択からID取得</h3>
<div class="grid">
<span class="muted">「名前 ID」形式で出力します。</span>
</div>
<textarea id="output" readonly></textarea>
<div style="text-align: right">
<button id="getBtn" class="btn">取得</button>
<button id="copyBtn" class="btn">コピー</button>
</div>
</div>
</div>
<script>
function splitLines(text) {
return text.split(/\r?\n/);
}
function post(type, payload) {
parent.postMessage(
{ pluginMessage: Object.assign({ type: type }, payload || {}) },
"*"
);
}
document.getElementById("selectBtn").onclick = function () {
var raw = document.getElementById("idsInput").value;
var ids = splitLines(raw);
post("select-by-id", { ids: ids });
};
document.getElementById("getBtn").onclick = function () {
post("get-selected-ids", {});
};
document.getElementById("copyBtn").onclick = function () {
var text = document.getElementById("output").value;
if (!text) {
alert("コピーする内容がありません");
return;
}
// 利用環境によって権限・対応が異なるため、失敗時は手動コピーを案内する
navigator.clipboard.writeText(text).then(
function () {
alert("コピーしました");
},
function () {
// フォールバック
var ta = document.getElementById("output");
ta.focus();
ta.select();
try {
const copied = document.execCommand("copy");
alert(copied ? "コピーしました" : "選択した文字を手動でコピーしてください");
} catch (e) {
alert("コピーに失敗しました");
}
}
);
};
// プラグイン本体からのメッセージ受信
window.onmessage = function (event) {
if (event.source !== parent) return;
var msg =
event.data && event.data.pluginMessage
? event.data.pluginMessage
: null;
if (!msg) return;
if (msg.type === "selection-result") alert("選択" + msg.selected + "件 / スキップ" + msg.skipped + "件");
if (msg.type === "selected-ids" && msg.ids) {
document.getElementById("output").value = msg.ids.join("\n");
}
};
</script>
</body>
</html>取得できない場合とコピーの注意点
別ファイルのIDは、現在開いているファイル内の対象を指すとは限りません。ファイルとIDの組み合わせを確認します。PageやDocument自体はレイヤーの選択対象に含めません。
クリップボードへのコピーは、環境の権限・API対応によって失敗する場合があります。失敗時は出力欄の文字を選択して手動でコピーします。コピーの要求を送っただけで成功とは扱わない実装です。
ファイルキーとIDからURLを作る場合はレイヤーURLの一括出力を参照してください。
元記事の操作例

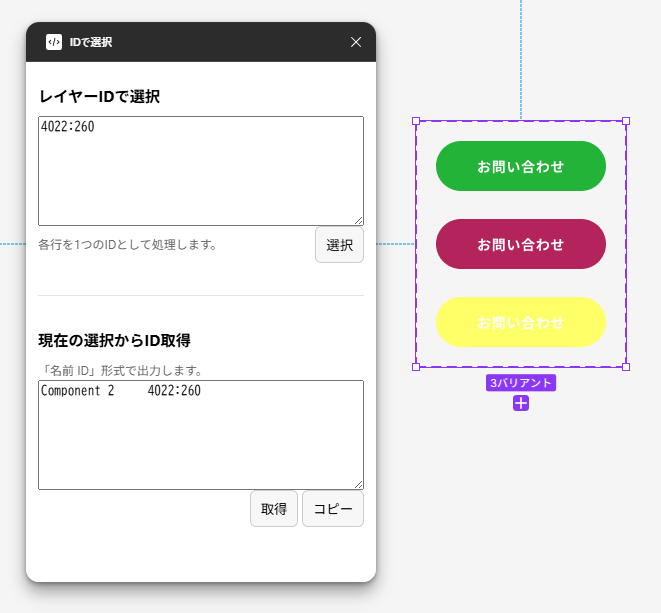

以下は元記事で掲載していた開発時の画面です。今回のコード改稿後に撮影した検証画像ではありません。現行の表示や変更結果は、複製したファイルで確認してください。

検証範囲と関連ガイド
今回確認したのは掲載コードの構文と、該当する入力・例外処理のローカル模擬検証です。Figmaデスクトップアプリ上での動作確認とは区別しています。改稿後のコードと、元記事が参照していたGitHub上の版が一致するとは限りません。
開発環境と登録手順はFigmaプラグイン開発入門、公開はCommunityへの申請を参照してください。
